Model ST-2
Features/dimensions similar to ST-1
Weight: 12 lbs
2 adjustable 8" L-brackets
Holds items up to 4" Thick
Model ST-3
20 pounds for stability
4"x22" x 3/8" baseplate
Two adjustable 11.5" L-brackets
5-inch opening
Six countersunk 1/4" screw holes
Model ST-4
30 pound weight for maximum stability
12" x 22" x 1/4" thick base plate
Two adjustable L-brackets, 11.5"H X 4"W
6-inch opening
Six countersunk 1/4" screw holes
Models STQ-1 / STQ-4
15-pound 12" x 12" square base
3/8" threaded stud
One 3" L-Bracket
Accepts the STQ-1 Quick-Stand Sleeve
Can be stabilized with a sand bag
Model STQ-5
12" x 22" 1/4" thick base plate
Single 11.5" 4" L-bracket,
Six countersunk 1/4" screw holes for attachment to the display item
Includes handle slot in the base
Accepts STQ-2 Heavy Duty Quick Stand Sleeve (not shown)

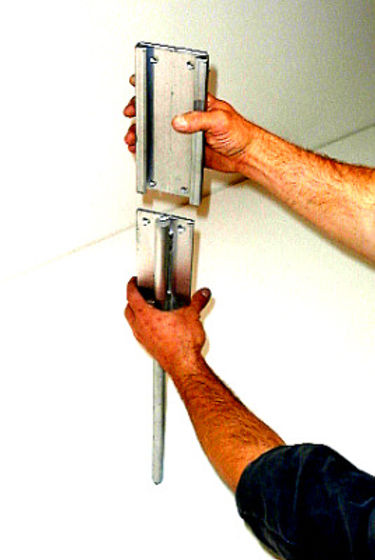

Models STQ-1 / STQ-3
STQ-1 Quick Stand Sleeve and STQ-3 Quick Stand Stake
make temporary outdoor signs and displays a breeze
Mount the Sleeve to the back of your display
Drive the 24" stake
Drop the display over the flange on the stake
Or screw stake flange directly to the display
Models STKIT, STK-1-4
STKIT includes a 12" x 12" base and four tubes (also available separately) which accept:
2"x 2" lumber (STK-1)
1"x2" lumber (STK-2)
1-1/4" tent poles (STK-3)
3/4" conduit (STK-4)
The 15-pound base is also available separately (STK)
Model STL
5-pound 8" x 8" square base
Clamps smaller theatrical lighting
Shown with tube STK-4, available separately
Heavy Standz
Quick Standz
Standard Products.
Utility Standz
Model ST-1
Weight: 11.5 lbs
3" x 20" baseplate, 3/8" thick
One adjustable 8" L-bracket and one fixed 8" upright
Holds items up to 2" thick
Eight 1/4" Screw Holes to attach the item being held
Two 3/8" holes in baseplate - ground stake or screw to floor/stage
Products
Standzall Display Systems manufactures a complete line of products:
Standard - ST-1 and ST-2 handles flats, senery, lattice up to 50 lbs
HeavyStandz - handles heavier objects, provides more stability
QuickStandz - mounting bracket attaches to the display item and slides over an L bracket or a stake
UtilityStandz - steel bases with square or round tubes that hold poles, lumber, signs, etc.
Scroll Down for images and more details
